Switch

Products
Very high performance switches with a lifespan of up to 5 million cycles.
• Frequency Range: DC-26 GHz
• Operating Voltage: 12V to 48V
• Family: SPDT, Subminiature
• Actuator Coil Type: Manual, Latching (Reset, Pulse, self cuttoff), Failsafe, Normally Open.

 SP2T  SP3T   SP4T   SP8T


SWITCH DC-26 GHz




SWITCH DC-18 GHz

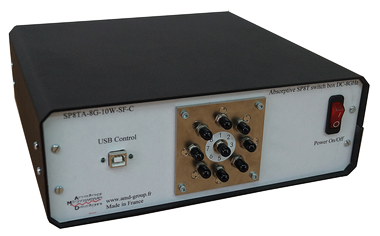

ABSORPTIVE SP8TA SWITCH BOX, DC-8GHz, 10W, SF-C

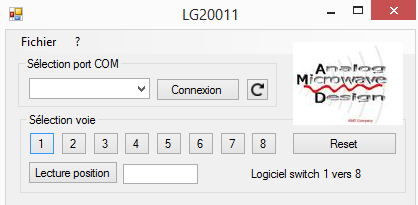

Windows software part number LG20011
Labview VI software part number LOG14008

Absorptive SP8TA switch box

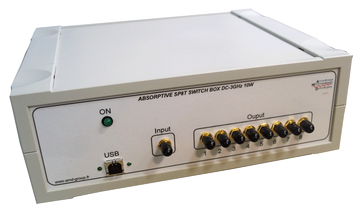

ABSORPTIVE SP8T SWITCH BOX, DC-3GHz, 10W, SMAf




Windows software part number LG20011

Labview VI software part number LOG14008

Absorptive SP8T switch box

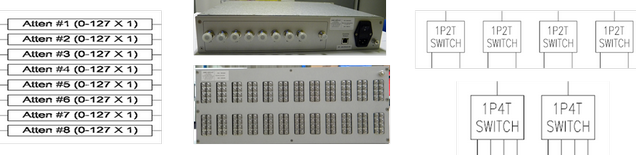

ATTENUATOR SWITCH BENCH

Programmable Attenuator Assemblies

The below schematic shows an example of a standard 8 programmable attenuator assemblies.
Every path from input to output has its own programmable attenuator and is own software adress.
With Ethernet and USB control, we can provide you with the remote commands to simplify your test setup.

Programmable Switch Assemblies

The below schematic shows an example of a standard 4xSP2T and 2xSP4T3 programmable switch assemblies.
Every switch has its own programmable position and is own software adress.
With Ethernet and USB control, we can provide you with the remote commands to simplify your test setup.

Attenuator switch bench
